Fast Prototyping of On-Body Sensors

Skin is personal and sensitive. As a result, design and placement of on-body physical interfaces need to be well thought out. One way of “getting the design right” is to take an iterative design approach and sketch a multitude of designs to be modified, adjusted and elaborated on. Using piezo-resistive kinesiology tape made available through the Polysense process, one can sketch functional on-skin interfaces and experience innovative body interactions. For instance, one can design touch, gesture, and pressure sensors that way. We illustrate sketching techniques with augmented and unaugmented tape for iterative design of on-skin interfaces.

2020

Digital FabricationOpen SourceEmbodied Interaction

See also Polysense BodyStylus Markpad Eyecam Tactjam BodyLoci Micropress

/images/projects/on-body_sensors/low_res/sensors.jpg

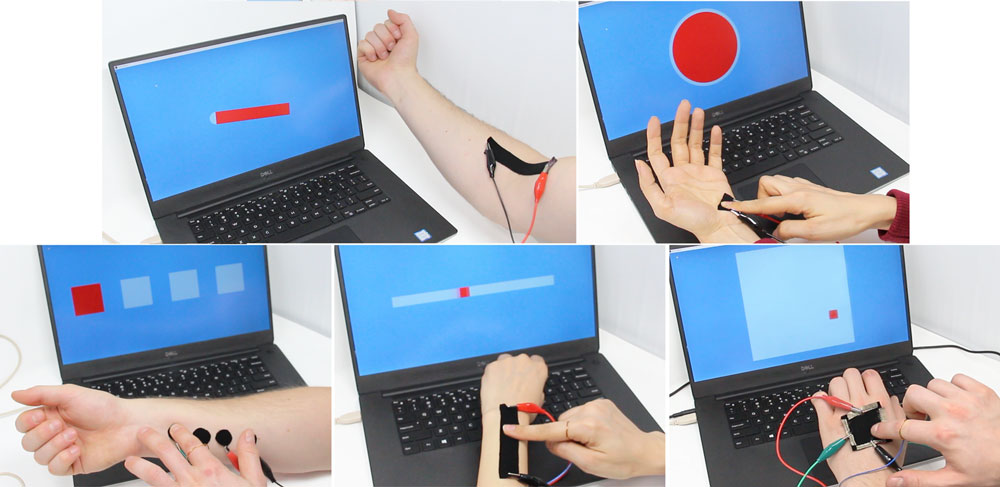

Sketching a variety of sensors
Using piezo-resistive kinesiotape, one can design a large variety of on-skin sensors to experience various on-body and body interactions. We demonstrate such sensors on the picture above. From top left to bottom right, we demonstrate a bend sensor placed at the inner part of the elbow to recognize bending gestures of the arm, a pressure sensor placed on the user's hand palm, a set of touch sensors placed on the inside of the user's forearm, a touch slider placed on the outer part of the user's forearm, and a 2D touch sensor placed on the back of the user's hand. These sensors use very simple circuits that can be assembled very quickly and do not require expert electronical knowledge. More details can be found in the paper.

Adapting to the body geometry

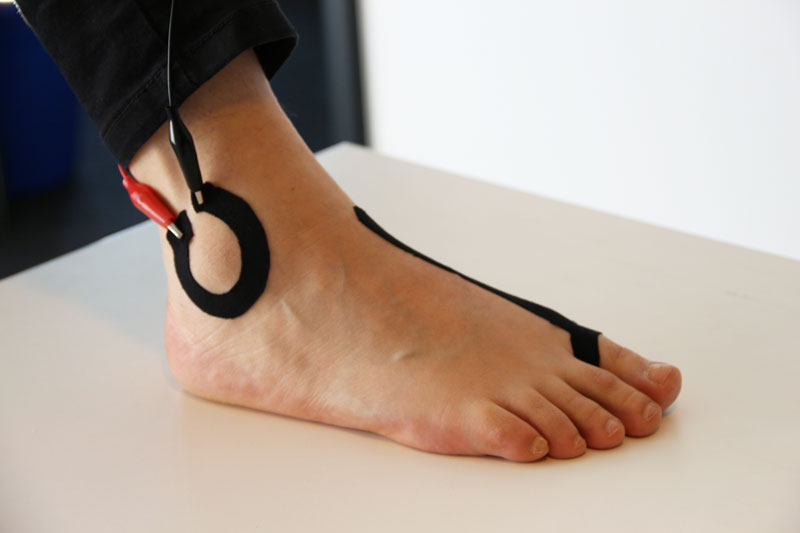

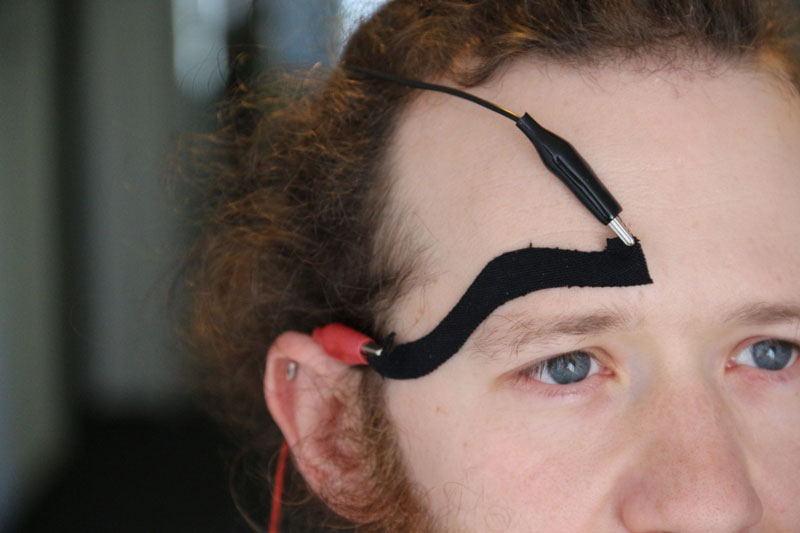

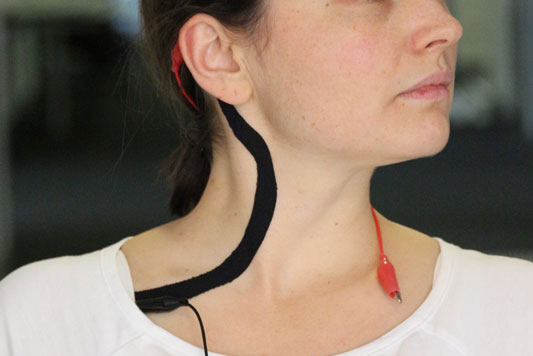

Kinesiotape is designed to stick on various body parts and conform to their geometries. We leverage this feature to sketch sensors on unconventional body areas like the foreheads, the necks, or the feet of users.

/images/projects/on-body_sensors/low_res/forehead.jpg /images/projects/on-body_sensors/low_res/neck.jpg /images/projects/on-body_sensors/low_res/foot.jpg

Sketch for the body, attach on the body, repeat

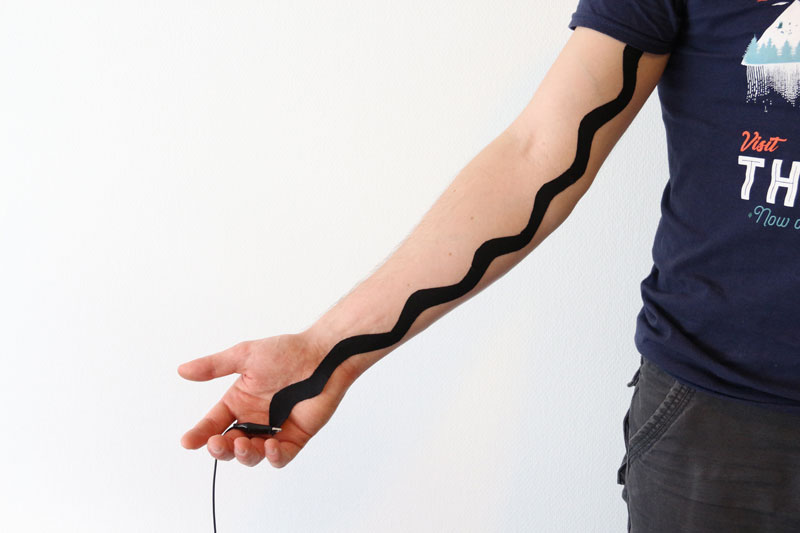

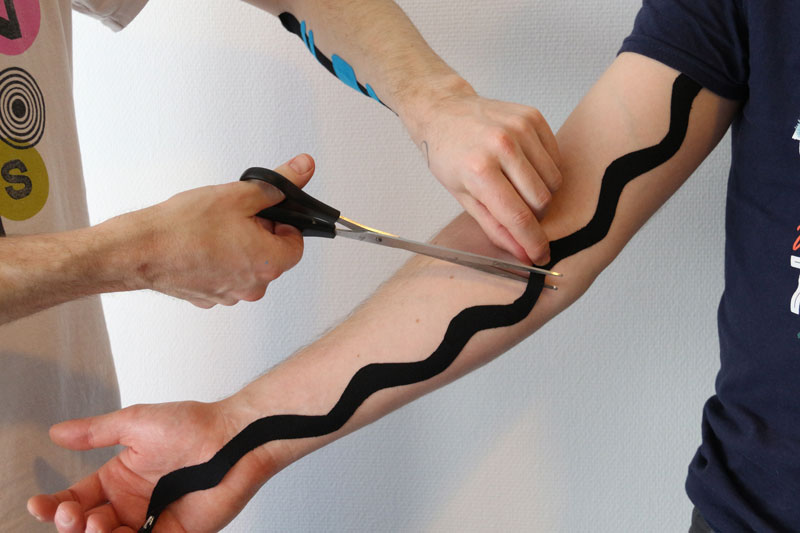

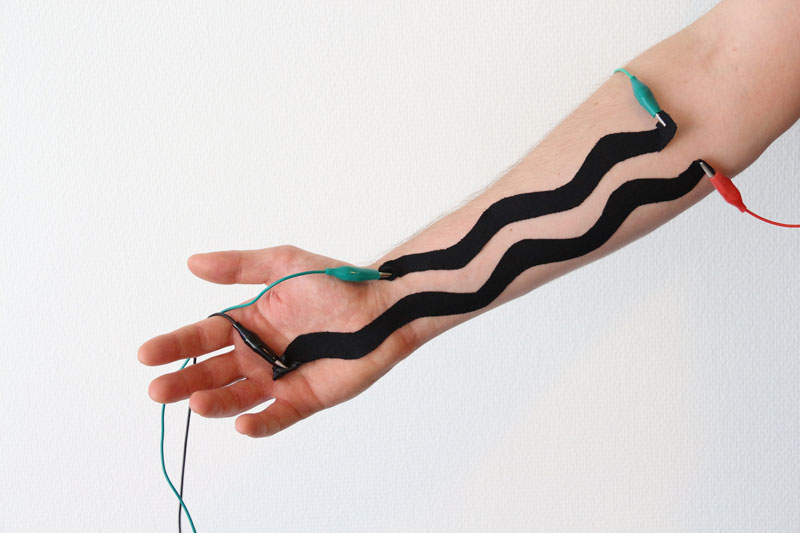

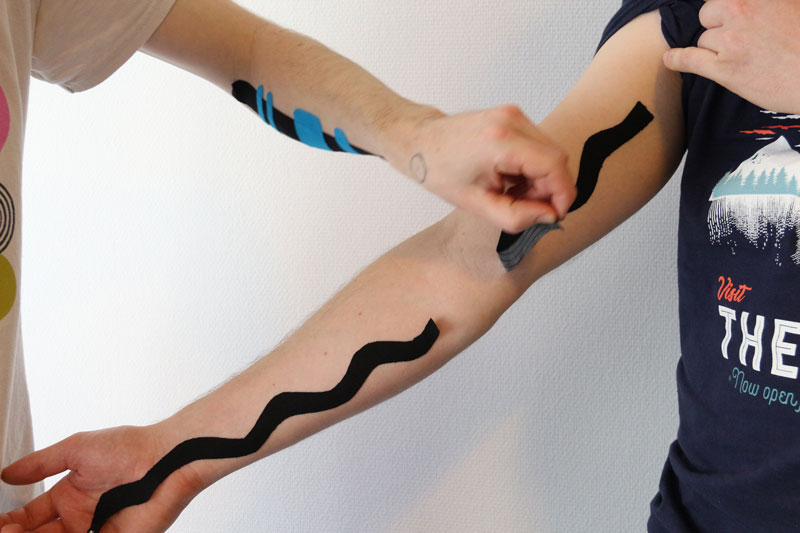

Another great advantage of kinesiotape to prototype on-body sensors is that it can be cut with scissors, attached on the skin, and then easily detached and re-attached on another body part. Hence, our approach largely builds on iterative design. Attaching the sensor on the body is particularly important to grasp to what extent the sensor conforms to the user's body. In the example below, we demonstrate how an original design can be attached to the body, then quickly changed with in the next iteration to better suit the user's needs.

/images/projects/on-body_sensors/low_res/reshape_1.jpg /images/projects/on-body_sensors/low_res/reshape_2.jpg /images/projects/on-body_sensors/low_res/reshape_3.jpg /images/projects/on-body_sensors/low_res/reshape_4.jpg

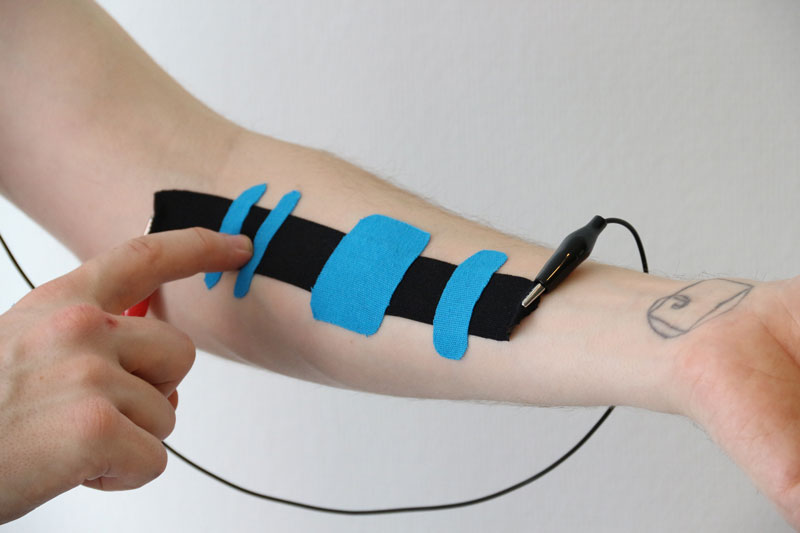

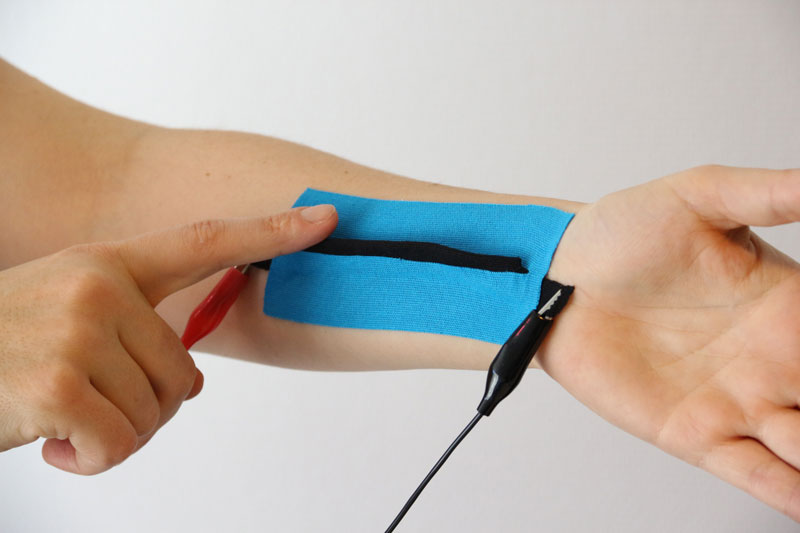

/images/projects/on-body_sensors/low_res/non_augmented.jpg /images/projects/on-body_sensors/low_res/non_augmented-2.jpg

Sketching On-Body Interactions using Piezo-Resistive Kinesiology Tape  Paul Strohmeier, Narjes Pourjafarian, Marion Koelle, Cedric Honnet, Bruno Fruchard, Jürgen Steimle AHs'20: Proceedings of the Augmented Humans International Conference, pp.1-7
