Today’s typical input device is fat, rigid and made of glass. However, advances in sensing technology and interaction design suggest thinking about input on other surface, including soft materials. While touching rigid and soft materials might feel similar, they clearly feel diferent when pressure is applied to them. Yet, to date, studies only investigated force input on rigid surfaces. In this project, we investigated the effects of compliance on force input. For visual targeting tasks and three levels of softness, the results of a user study indicate that high force levels appear more demanding for soft surfaces, but that performance is otherwise similar. We observed higher performance than previously reported in the research literature, hence suggesting force input has been underestimated. We infer implications for the design of force input on soft surfaces and conclude that interaction models used on rigid surfaces might be used on soft surfaces.

2021

HapticsUser StudyPsychophysics

See also bARefoot Weirding Haptics

Investigating Force Input on Soft Surfaces
If merely touched, rigid and soft surfaces feel similar. However, soft surfaces deform under the pressure of the user’s finger (see images below), which provides additional sensory cues by stimulating tactile and kinesthetic receptors. Several studies showed that we perceive the compliance1 of a surface mostly through deformations because the surface wraps around the fingertip and induces more tactile innervation. It is therefore reasonable to assume that these additional sensory cues provided by soft materials have an effect on the user performance while interacting with force input.

/images/projects/squish_this/all_surfaces-10N.jpg

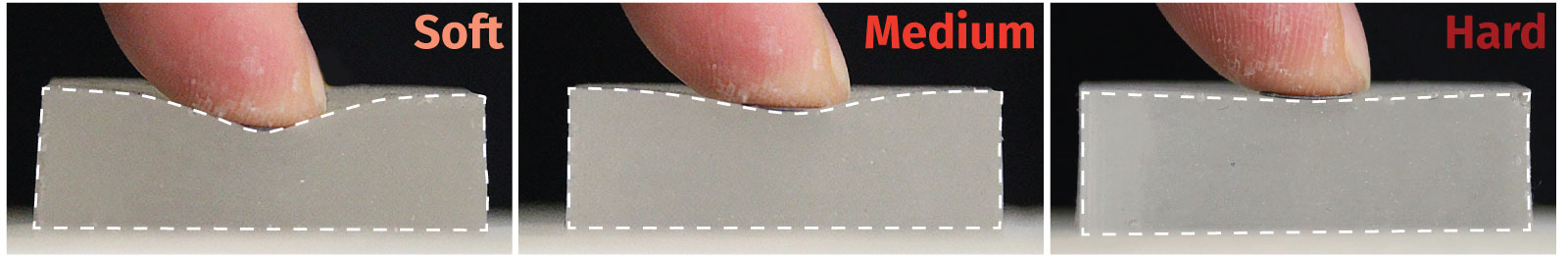

The three surfaces (silicone samples) used in our study. A pressure sensor is located between the fingertip and the surface. In this example, the user applies a force of 10N on each surface.

The Surface Deformability Affects the Sensor Response Curve

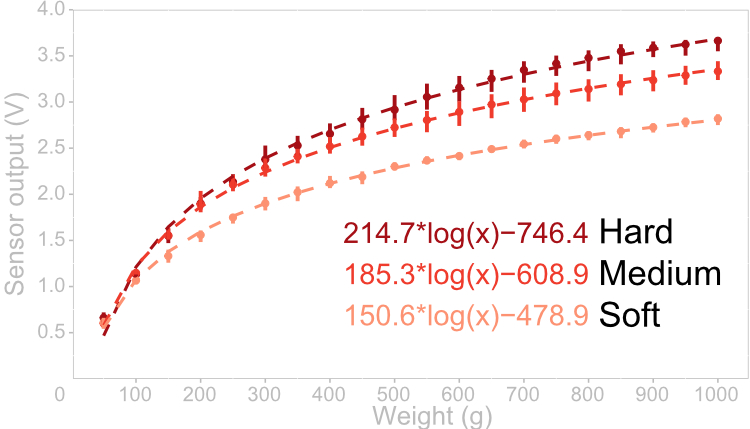

We use a Force Sensing Resistor (FSR) in our study to sense the force applied on the surface. We place this FSR on top of the surface. As these sensors are sensitive to deformation, we compute its response curve by applying various weight on them repeatedly, for each surface. The results are shown on the right-hand image. These results exhibit significant differences in the response curves. We use the models inferred to linearize the output of the sensor during our study to provide users with a linear visual mapping.

/images/projects/squish_this/response_curves.jpg

Conventional Targeting Task

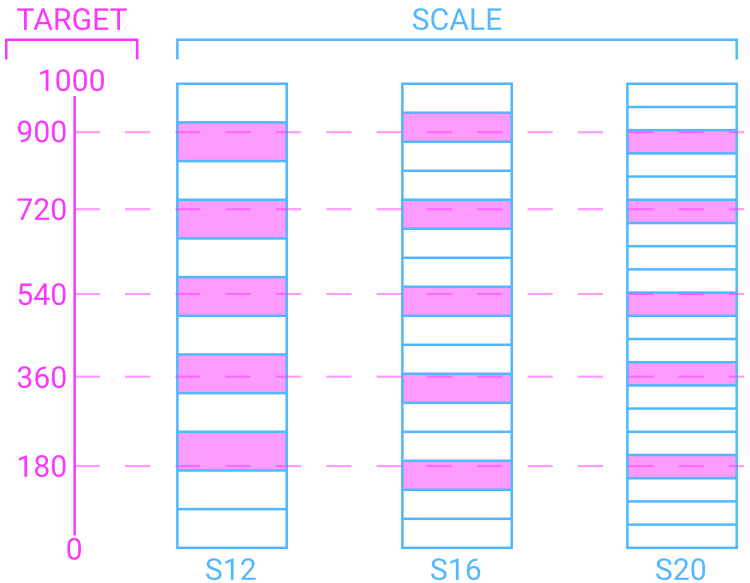

We build on a conventional targeting task to assess user performance while controlling force applied on soft surfaces. The user controls a slider by applying more or less force on the surface, and must place the slider next to a given cell of a force scale (see right-hand image). To control the difficulty, we propose three different scales with various cell heights. We identify the target force levels by crossing the scales with target values (see right-hand image). To select a force level, we leverage a quick release mechanism: once the force level is on the right cell, the user can release quickly the force applied on the surface. The system then infers the force level selected based on timings informed by the literature.

/images/projects/squish_this/softness_experiment/independent_variables.jpg
/images/projects/squish_this/softness_experiment/accuracy.jpg

User Performance: Accuracy and Selection Time

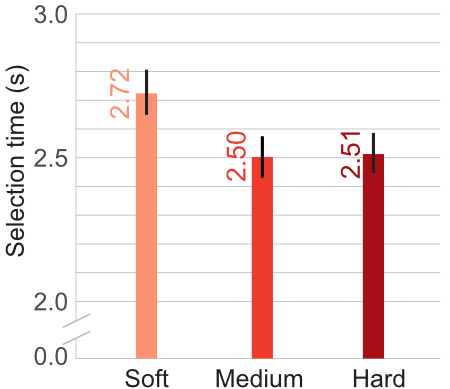

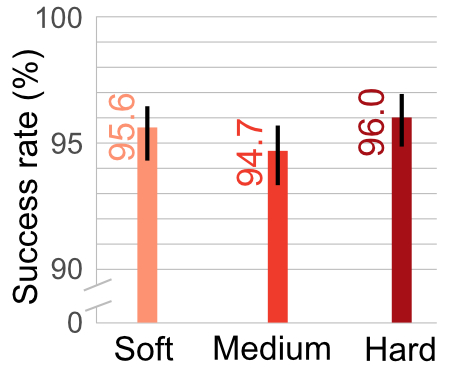

We evaluate the accuracy and interaction time as two major measures of the user performance. Using visual estimation techniques (see the paper for more details), we do not find evidence of a difference in terms of accuracy between the surfaces (see left-hand image). We observe, however, high accuracy rates for all scales (~95%) which highlights a discrepancy with results reported in literature. We perform a systematic comparison with the literature (see Table 1 in the paper) and show that force input has been underestimated. Looking at the selection times, we observe a difference between the soft surface and the others (~200ms). We investigate this more by looking at the number of crossings below.

/images/projects/squish_this/softness_experiment/time.jpg

High Demand to Target Levels in High Force Levels on Soft Surfaces

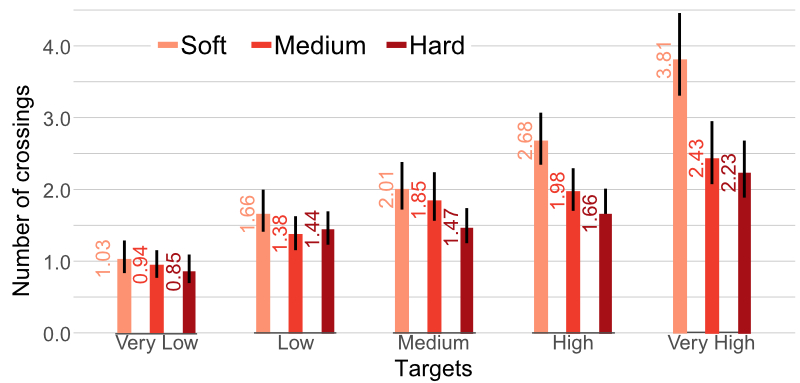

We investigate the number of crossings to better understand why soft surfaces lead to slower selection times. A crossing corresponds to the user entering and leaving the bounds of the target force level, and can be seen as a metric that represents jitters in the user input. We observe that the number of crossings remains comparable for low force levels, but increases on soft surfaces when reaching high force levels. Overall, we conclude that selecting force levels on soft surfaces is more demanding on soft surfaces.

/images/projects/squish_this/softness_experiment/crossings.jpg

Design Implications and Use Cases

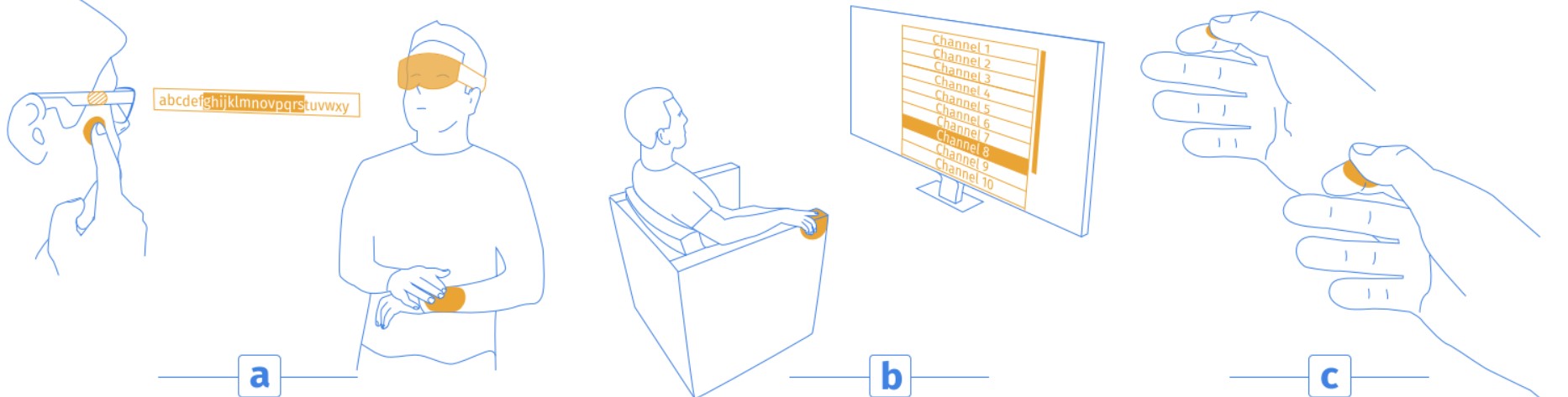

When designing interfaces on arbitrary surfaces, the input method is typically spatial. Systems which use force input are comparatively rare. This is unfortunate as force input is a compelling means to provide subtle input requiring minimal movements in a wide variety of contexts. For instance, one could interact on the cheek or sleeve to control AR goggles and input text using force, interact on the armchair of an augmented sofa to control a TV, or leverage force input in the context of thumb-to-finger interactions (see image below). One explanation of why this is seldom done is because the throughput is relatively low. Our study results suggest that this general consensus might be wrong, and that carefully implemented force input devices provide a much higher input fidelity than is generally assumed in the HCI community.

/images/projects/squish_this/teaser/use_cases.jpg

Squish This: Force Input on Soft Surfaces for Visual Targeting Tasks Bruno Fruchard, Paul Strohmeier, Roland Bennewitz, Jürgen Steimle CHI'21: Proceedings of the ACM SIGCHI Conference on Human Factors in Computing Systems
